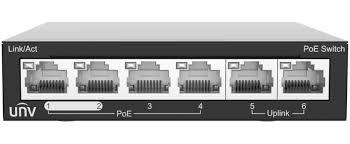

4 Port POE + 2 Port Link Switch Geri Dön
Ürün Kodu : NSW2020-6T-POE-IN
Kategori :
POE Switchler >
CCTV Aksesuarları
Ürün Açıklaması
Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All metal housing, safe and reliable
Ürün Açıklaması
| Model | NSW2020-6T-POE-IN | NSW2020-10T-POE-IN | NSW2020-16T1GT1GC-POE-IN | NSW2020-24T1GT1GC-POE-IN |
| Ports | 6×100Mbps network ports (RJ45), including 4 PoE ports | 10×100Mbps network ports (RJ45), including 8 PoE ports | 16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports | 24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az | ||
| Switching capacity | 1.2Gbps | 2Gbps | 7.2Gbps | 8.8Gbps |
| Forwarding performance | 0.90Mpps | 1.49Mpps | 5.36Mpps | 6.55Mpps |
| Packet Buffer | 448Kbit | 448kbit | 4M bit | 4Mbit |
| MAC | 1K | 1K | 16K | 16K |
| Dimensions (W×D×H) | 107*101*25mm | 171*103*25mm | 440*195*44mm | 440*250*44mm |
| Weight | 0.19KG | 0.29KG | 2.12KG | 2.93KG |
| Power supply | DC：48/51V | AC: 100-240V, 50/60Hz | ||
| PoE | 802.3at/af （4/5+，7/8-） | |||
| Max. PoE Power | Max capacity: 60W Max capacity for single port: 30W | Max capacity:88W Max capacity for single port: 30W | Max capacity: 225W Max capacity for single port: 30W | Max capacity: 370W Max capacity for single port: 30W |
| Prior Ports | 1~2 | 1~2 | 1~8 | 1~8 |
| Cooling Fans | 0 | 0 | 1 | 1 |
| Operating temperature | 0°C-40°C (32°F-104°F) | |||
| Operating humidity | 10%～90% (noncondensing) | |||
| Storage humidity | 5%～90% (noncondensing) | |||
| Indicator | POWER: Steady on: AC input is normal Off: No AC input | |||
| No PoE Indicator | PoE: Off: No PoE power supply Steady on: PoE power supply is normal | |||
| PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification | ||||
| LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data | ||||
| Working Mode | Default(Normal mode) : All ports can communicate with each other. EXTEND(Surveillance mode): Transmission distance up to 250 meters. | Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time. Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. | ||
