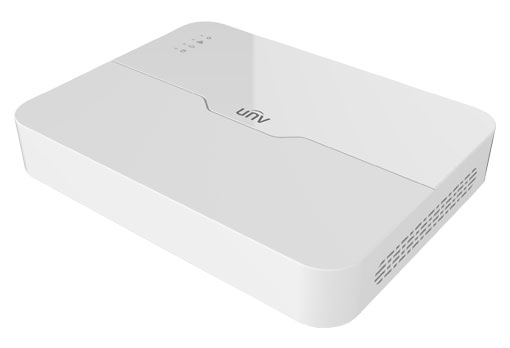

8 CH ULTRA H265 NETWORK KAYIT CİHAZI Geri Dön
Ürün Kodu : NVR302-08S2-P8
Ürün Açıklaması

• Support Ultra265/H.265/H.264 video formats

• 8 channel input

• Plug & Play with 8/16 independent PoE network interfaces

• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

• Support HDMI and VGA simultaneous output

• Up to 4K resolution recording

• ANR technology to enhance the storage reliability when the network is disconnected

• Support cloud upgrade

Ürün Açıklaması
DecodingDescription
DecodingFormatUltra 265, H.265, H.264
DecodingCapabilityNVR302‑08S2‑P8:2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30 NVR302‑16S2‑P16:2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30
AudioCompressionG.711A, G.711U
NetworkDescription
IncomingBandwidthNVR302‑08S2‑P8:80Mbps
OutgoingBandwidth64Mbps
RemoteUsers128
ProtocolsTCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP
Browser(Plugin)Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInputDescription
IPVideoInputNVR302‑08S2‑P8:8‑ch
RCAAudioInput1‑ch
Video/AudioOutputDescription
HDMIOutputHDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutputVGA:1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCAAudioOutput1‑ch
LiveviewDisplayNVR302‑08S2‑P8:1/4/6/8/9
CorridorModeScreenNVR302‑08S2‑P8:3/4/5/7/9
Two-wayAudioDescription
Two-wayAudio1‑ch, RCA(Using the audio input and output)
SnapshotDescription
FTP/Schedule/EventSnapshot4‑ch snapshot, up to D1 resolution
RecordingDescription
RecordingResolution8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocalNVR302‑08S2‑P8:8‑ch
SmartDescription
VCADetectionbyIPCFace Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);People Counting(People Flow Counting, Crowd Density Monitoring)
VCASearchMotor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report
SmartbyIPCTotal 8‑ch(Face Detection, SIP, UMD)
AlarmDescription
GeneralAlarmDefocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarmIP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
GUILanguageDescription
GUILanguage38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
HardDiskDescription
SATA2 SATA Interfaces
CapacityUp to 10TB for each HDD(The maximum HDD capacity varies with environment temperature)
ExternalInterfaceDescription
NetworkInterface1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USBRear panel: 1 x USB3.0;Front panel: 1 x USB2.0
RS485N/A
RS232N/A
AlarmIn4‑ch
AlarmOut1‑ch
PowerSupplyAC 100 ~ 240 V
PowerSwitchSupport
PoEDescription
InterfaceNVR302‑08S2‑P8:8 RJ45 10M/100M self‑adaptive Ethernet Interface
MaxPowerNVR302‑08S2‑P8:Max 30W for single port, Max 130W in total
SupportedStandardIEEE 802.3at, IEEE 802.3af
WorkingEnvironmentDescription
WorkingTemperature‑10 °C ~ 55 °C (14 °F ~ 131 °F)
WorkingHumidity≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD)≤ 10W
DimensionsDescription
Weight(withoutHDD)≤2.6kg (5.73lb)
DimensionsNVR302‑08S2‑P8:380mm × 315mm ×53mm (15.0"× 12.4"×2.1" )
CertificationDescription
CertificationCE;FCC;UL;RoHS;WEEE
CEEN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCCPart15 Subpart B
