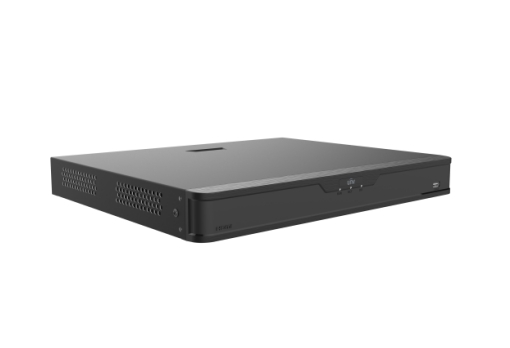

16CH 2 HDD KAPASİTELİ POE NETWORK KAYIT CİHAZI Geri Dön
Ürün Kodu : NVR302-16S2-P16
Kategori :
Network Kayıt Cihazları >
CCTV Sistemleri
Ürün Açıklaması
• Support Ultra265/H.265/H.264 video formats
• 16‑channel input
• Plug & Play with 8/16 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support HDMI and VGA simultaneous output
• Up to 4K resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
Ürün Açıklaması
| Decoding | Description |
| DecodingFormat | Ultra 265, H.265, H.264 |
| DecodingCapability | NVR302‑16S2‑P16:2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 |
| AudioCompression | G.711A, G.711U |
| Network | Description |
| IncomingBandwidth | NVR302‑16S2‑P16:160Mbps |
| OutgoingBandwidth | 64Mbps |
| RemoteUsers | 128 |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP |
| Browser(Plugin) | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
| Video/AudioInput | Description |
| IPVideoInput | NVR302‑16S2‑P16:16‑ch |
| RCAAudioInput | 1‑ch |
| Video/AudioOutput | Description |
| HDMIOutput | HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGAOutput | VGA:1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCAAudioOutput | 1‑ch |
| LiveviewDisplay | NVR302‑16S2‑P16:1/4/6/8/9/16 |
| CorridorModeScreen | NVR302‑16S2‑P16:3/4/5/7/9/10/12/16 |
| Two-wayAudio | Description |
| Two-wayAudio | 1‑ch, RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/EventSnapshot | 4‑ch snapshot, up to D1 resolution |
| Recording | Description |
| RecordingResolution | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| SynchronousPlaybackinLocal | NVR302‑16S2‑P16:16‑ch |
| Smart | Description |
| VCADetectionbyIPC | Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);People Counting(People Flow Counting, Crowd Density Monitoring) |
| VCASearch | Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report |
| SmartbyIPC | Total 8‑ch(Face Detection, SIP, UMD) |
| Alarm | Description |
| GeneralAlarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
| AlertAlarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
| GUILanguage | Description |
| GUILanguage | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| HardDisk | Description |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 10TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| ExternalInterface | Description |
| NetworkInterface | 1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Rear panel: 1 x USB3.0;Front panel: 1 x USB2.0 |
| RS485 | N/A |
| RS232 | N/A |
| AlarmIn | 4‑ch |
| AlarmOut | 1‑ch |
| PowerSupply | AC 100 ～ 240 V |
| PowerSwitch | Support |
| PoE | Description |
| Interface | NVR302‑16S2‑P16:16 RJ45 10M/100M self‑adaptive Ethernet Interface |
| MaxPower | NVR302‑16S2‑P16:Max 30W for single port, Max 240W in total |
| SupportedStandard | IEEE 802.3at, IEEE 802.3af |
| WorkingEnvironment | Description |
| WorkingTemperature | ‑10 °C ~ 55 °C (14 °F ~ 131 °F) |
| WorkingHumidity | ≤ 90% RH (non‑condensing) |
| PowerConsumption(withoutHDD) | ≤ 10W |
| Dimensions | Description |
| Weight(withoutHDD) | ≤2.6kg (5.73lb) |
| Dimensions | NVR302‑16S2‑P16:380mm × 315mm ×53mm (15.0"×12.4"×2.1" ) |
| Certification | Description |
| Certification | CE;FCC;UL;RoHS;WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
