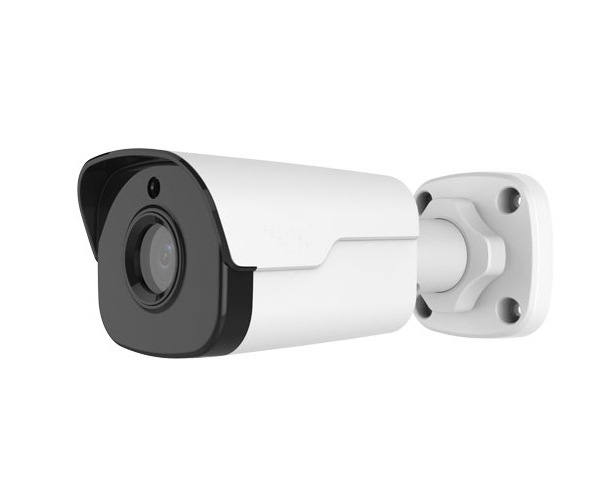

5 MP IP Ultra.265 4mm. Sabit lens 30m PoE TrueWDR Bullet Güvenlik Kamerası Geri Dön
Ürün Kodu : DEC3125SR3-ADUPF40
Kategori :
IP Kameralar >
CCTV Sistemleri
Ürün Açıklaması
Ürün Açıklaması
| DEC3125SR3-ADUPF40 | DEC3125SR3-ADUPF60 | ||||||||
| Kamera | |||||||||
| Sensor | 1/2.7", progressive scan, 5.0 megapixel, CMOS | ||||||||
| Lens | 4.0mm@ F1.6 | 6.0mm@ F1.6 | |||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||||
| 4mm | 90 | 36 | 18 | 9 | |||||
| 6mm | 135 | 54 | 27 | 13.5 | |||||
| Angle of View(H) | 79.7° | 50.5° | |||||||
| Angle of View (V) | 51.8 | 35.9 | |||||||
| Angle of View (O) | 98.1 | 62.1 | |||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||||||
| Minimum Illumination | Colour: 0.005 Lux (F1.6, AGC ON) 0 Lux with IR on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| S/N | >52dB | ||||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120dB | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||||
| Frame Rate | Main Stream: 5MP(2592 x 1944): Max. 20 fps, 5MP(2592 x 1944): Max. 25fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps, 3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max. 30 fps; Sub Stream:2MP(1920 x 1080): Max. 30 fps; Third Stream: D1(720 x 576): Max.30 fps; | ||||||||
| 9:16 Corridor Mode | Supported | ||||||||
| HLC | Supported | ||||||||
| BLC | Supported | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 8 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Motion Detection | Up to 4 areas | ||||||||
| Smart | |||||||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||||||
| cross line | Cross a pre-defined virtual line | ||||||||
| motion detection | Moving within a pre-defined virtual region | ||||||||
| Recognition | Face detection、Audio detection | ||||||||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | ||||||||
| Statistical Analysis | People counting | ||||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||||
| Audio | |||||||||
| Audio Compression | G.711 | ||||||||
| Suppression | Supported | ||||||||
| Sampling Rate | 8 KHZ | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | ||||||||
| Compatible Integration | ONVIF(Profile S, Profile T), API | ||||||||
| Interface | |||||||||
| Built-in Mic | Supported | ||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||
| General | |||||||||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | ||||||||
| Power consumption: Max 6 W | |||||||||
| Dimensions (L × W × H) | 157.3 ×62.4 ×63mm (6.2” × 2.5” × 2.5”) | ||||||||
| Weight | 0.45 kg (0.99 lb) | ||||||||
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing) | ||||||||
| Ingress Protection | IP67 | ||||||||
| Reset Button | Supported | ||||||||
