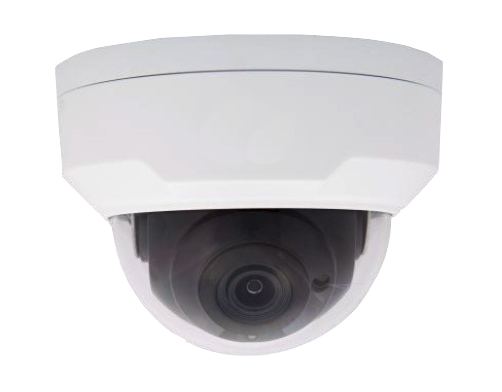

4 MP IP Ultra.265 2.8mm sabit lens 30m PoE TrueWDR Dome Akıllı Güvenlik Kamerası Geri Dön
Ürün Kodu : DEC424ER3-DVPF28
Kategori :
IP Kameralar >
CCTV Sistemleri
Ürün Açıklaması
Optik
* Gündüz / gece işlevselliği
* Akıllı IR, 30 m'ye (98 ft) kadar IR mesafesi
* 120 dB'e kadar WDR (Geniş Dinamik Aralık)
* 2D / 3D DNR (Dijital Gürültü Azaltma)
Sıkıştırma
* Ultra 265, H.264, MJPEG
* Gömülü akıllı algoritma
* YG (İlgi Alanı)
* Özelleştirilmiş OSD
Ağ
* ONVIF Uygunluğu
Yapı
* Geniş sıcaklık aralığı: -35 ° C ila 60 ° C (-31 ° F ila 140 ° F)
* Geniş giriş voltajı ±% 25
* IK10 saldırılara karşı dayanıklı
* IP67
* 3 eksenli
Ürün Açıklaması
| DEC424ER3-DVPF28 | DEC424ER3-DVPF36 | DEC424ER3-DVPF60 | |||
| Camera | |||||
| Sensor | 1/3",progressive scan, 4.0 megapixel, CMOS | ||||
| Lens | 2.8mm@F2.0 | 3.6mm@F2.0 | 6.0mm@F2.0 | ||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.8mm | 63 | 25.2 | 12.6 | 6.3 | |
| 3.6mm | 81 | 32.4 | 16.2 | 8.1 | |
| 6 mm | 135 | 54 | 27 | 13.5 | |
| Angle of View (H) | 104.4° | 86.4° | 49.9° | ||
| Angle of View (V) | 67° | 53.2° | 32.9° | ||
| Angle of View (O) | 135.7° | 112.3° | 61.4° | ||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~75° | Rotate: 0°~360° | ||
| Shutter | Auto/Manual, 1~1/100000 s | ||||
| Minimum Illumination | Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >55 dB | ||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.264,MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream:4MP (2592×1520): Max. 20 fps，4MP (2560×1440): Max. 25 fps，3MP (2048×1520): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max. 30fps | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| 9:16 Corridor Mode | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||
| cross line | Cross a pre-defined virtual line | ||||
| motion detection | Moving within a pre-defined virtual region | ||||
| Recognition: | Face detection、Audio detection | ||||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | ||||
| Statistical Analysis | People counting | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8 KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | ||||
| Compatible Integration | ONVIF(Profile S, Profile G), API | ||||
| Interface | |||||
| Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] | ||||
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |||||
| Alarm I/O | 1/ 1 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| General | |||||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | ||||
| Power consumption: Max 5W | |||||
| Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) | ||||
| Weight | 0.45 kg (0.99 lb) | ||||
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistant | IK10 | ||||
